AD3 (1.2-1.5LPM) 12V 24V DC Brushless Motor Electric mini diaphragm vacuum pump
description1
Technical Parameters
| Model: | AD3DC6/12/24E | AD3BL12/24 | AD3BLL12/24 |
| Voltage range: | 6V/12V/24Vdc | 12V/24Vdc | 12V/24Vdc |
|
Maximum flow: (electronic flowmeter) |
1.2L/min | 1.5L/min | 1.5L/min |
| Max. negative pressure: | -45KPa | -45KPa | -45KPa |
| Max. positive pressure: | 90KPa | 90KPa | 90KPa |
| Motor type: | DC brushed motor | DC brushless motor | DC brushless motor |
| Max. power: | 1.6W | 1.6W | 1.6W |
| Waterproof grade: | IP00/IP40 | IP00/IP40 | |
| Storage environment temp.: | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ |
| Working environment temp.: | -20℃~50℃ | -20℃~45℃ | -20℃~45℃ |
| Pump head material: | Imported Polyamides | Imported Polyamides | Imported Polyamides |
| Pump diaphragm/valve material: | Imported EPDM | Imported EPDM | Imported EPDM |
| Pump Body material: | Imported Polyamides | Imported Polyamides | Imported Polyamides |
| Net Weight: | 78.6g | 56.2g | 79g |
| Dimensions: | 50*24.5*43.3mm | 41*24.5*36mm | 41*24.5*36mm |
AD3BL12E

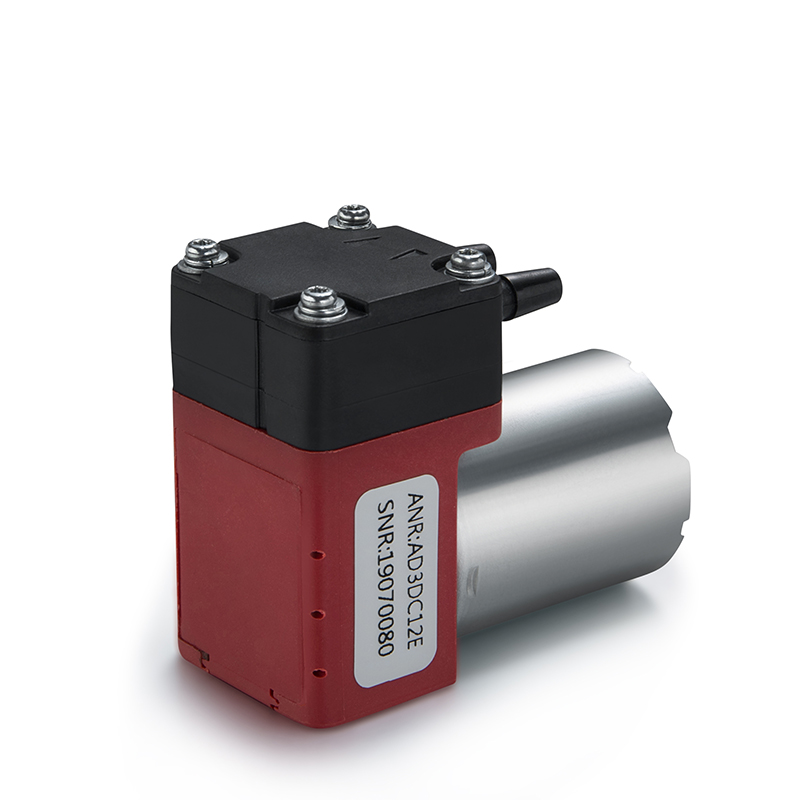

AD3DC12E
AD3BL12E
AD3BL24E
Handheld Instruments
laboratory analysis
medical treatment
Other Applications-Miniature Instruments
Oil-free operation
Micro diaphragm vacuum pump completely oil-free lubrication to avoid gas contamination, suitable for applications that require clean air extraction (such as medical, laboratory, gas analysis).
Strong self-priming ability
Micro diaphragm vacuum pump can directly extract gas or trace liquid without auxiliary equipment, which is very suitable for occasions with low initial vacuum requirements.
Compact structure and small size
Micro vacuum pump is small and light, easy to install in space-constrained or portable equipment.
Good corrosion resistance
Key components (such as diaphragms and valve plates) can be made of chemically resistant materials (such as PTFE, EPDM, etc.), suitable for corrosive or wet gases.
Smooth operation and low noise
Micro vacuum pump is Low vibration and low noise during operation, suitable for fields that require a quiet environment (such as hospitals, laboratories, and household equipment).
Simple maintenance
Simple design, no frequent maintenance required, diaphragms and valve plates are easy to replace, and maintenance costs are low.
Moderate vacuum and stable flow
Micro diaphragm vacuum pump is suitable for medium vacuum (generally to tens of kPa absolute pressure), and the flow output is stable and reliable.
Long service life
The diaphragm material is designed to be fatigue-resistant and can support long-term continuous operation.
High energy efficiency
The motor and pump head are optimized to have a high energy efficiency ratio, suitable for battery-powered or energy-saving applications.
