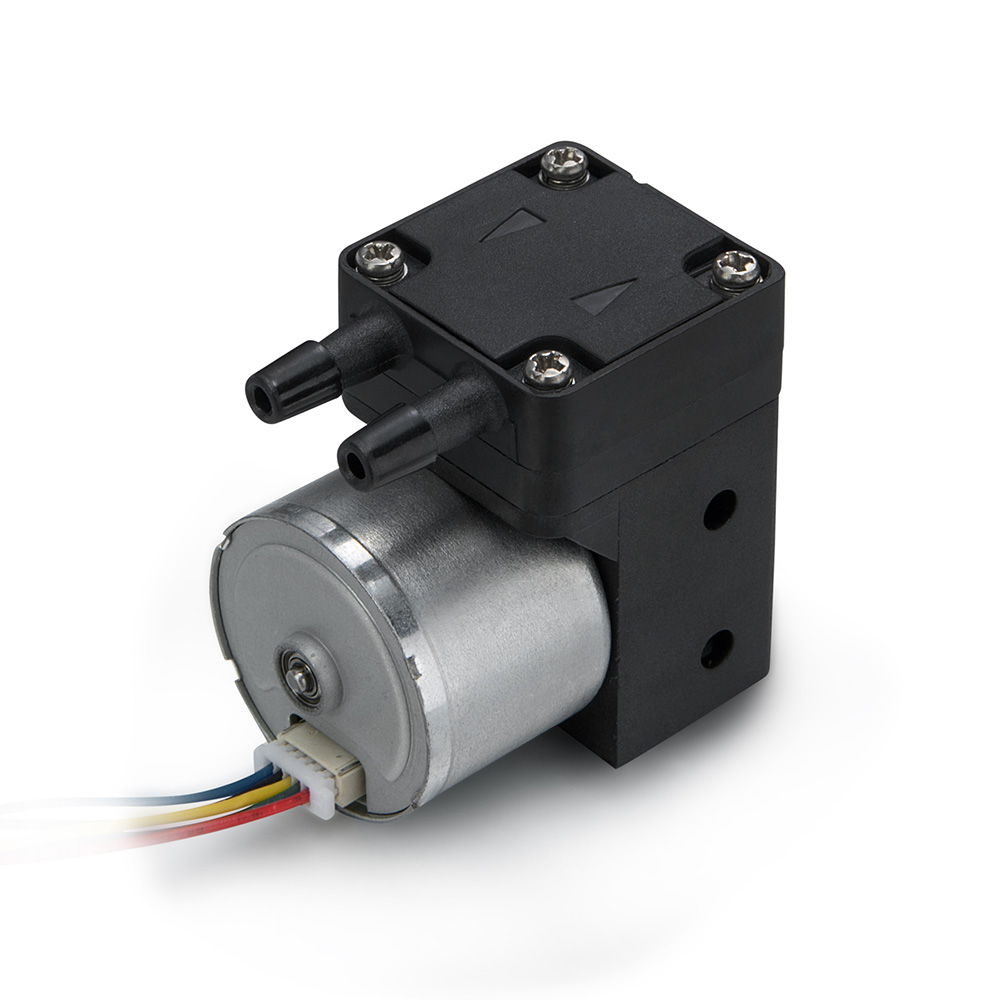

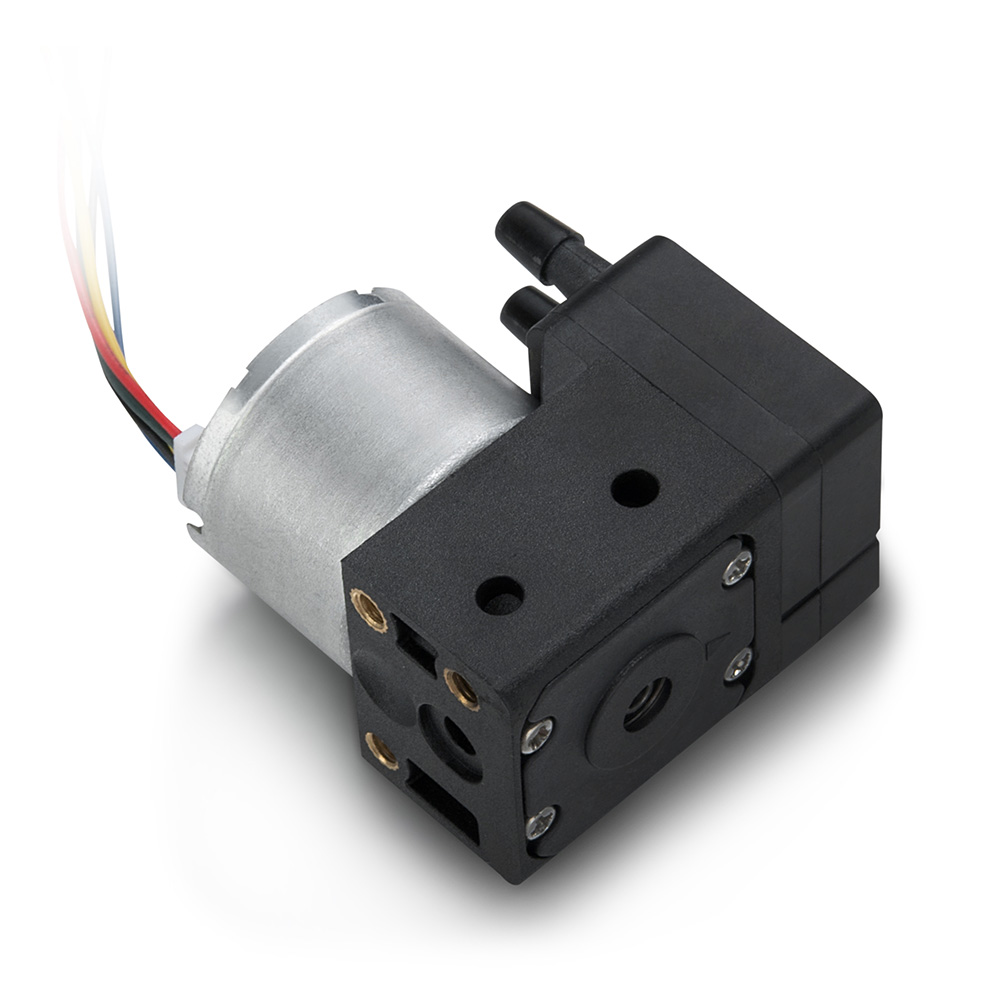

FS100 (0.02-0.18LPM) Adjustable speed 12v Volt Dc Motor Water Micro Diaphragm Water Pump
description1
Technical Parameters
| Model: | FS100KEEDC-12V FS100KEEDC-24V | FS100KTFDC-12V FS100KTFDC-24V | FS100KEEDB-12V FS100KEEDB-24V | FS100KTFDB-12V FS100KTFDB-24V |
| (Standard) | (Anti-corrosion) | (Standard) | (Anti-corrosion) | |
| Voltage range: | 12/24Vdc | 12/24Vdc | 12/24Vdc | 12/24Vdc |
| Flow: | 20-180ml/min | 20-180ml/min | 20-180ml/min | 20-180ml/min |
| Suction(mWg): | 3 | 3 | 3 | 3 |
| Pressure(mWg): | 10 | 10 | 10 | 10 |
| Motor type: | Dc brushed motor | Dc brushed motor | Dc brushless motor | Dc brushless motor |
| Max. power: | 3.6w | 3.6w | 3.6w | 3.6w |
| Storage environment temp.: | 0℃~40℃ | 0℃~40℃ | 0℃~40℃ | 0℃~40℃ |
| Working environment temp.: | 5℃~40℃ | 5℃~40℃ | 5℃~40℃ | 5℃~40℃ |
| Pump head material: | PPS | PPS | PPS | PPS |
| Pump diaphragm/valve material: | EPDM / EPDM | PTFE / FKM | EPDM / EPDM | PTFE / FKM |
| Pump Body material: | Nylon | Nylon | Nylon | Nylon |
| Net Weight: | 66.3g | 66.3g | 55g | 55g |
| Dimensions(mm): | 50*24.2*37.2mm | 50*24.2*37.2mm |
FS100KEEDC-12V & FS100KEEDC-24V
FS100 (Water)
Medical Devices
Laboratory Analytical
Printing and Spraying Equipment
Water Treatment
Food and beverages
Main features of micro diaphragm water pump:
● Small and light
Small size, easy to integrate into compact equipment, such as portable medical or testing instruments.
● Strong self-priming ability
Self-priming start can be achieved, suitable for occasions without auxiliary pumping.
● Liquid-gas isolation, safe and leak-free
The diaphragm completely isolates the drive mechanism from the medium, suitable for corrosive, volatile, and toxic liquids.
● Dry operation
Unlike impeller pumps, it does not require medium lubrication and is suitable for discontinuous or intermittent use.
● Low noise, low power consumption
Suitable for battery-powered systems, such as portable devices or wearable devices.
● Adjustable flow
Flow control can be achieved by adjusting the voltage or drive frequency (typical flow range: a few ml/min to hundreds of ml/min).
Main application areas of diaphragm water pumps:
1. Medical equipment
Infusion pumps, dialyzers, automatic blood glucose analyzers
Portable sampling/injection equipment
In vitro diagnostic equipment (IVD)
2. Laboratory instruments
Chromatographs, liquid automatic injection systems
Chemical reagent metering and delivery
3. Environmental and industrial testing
Reagent pumps in online water quality monitoring instruments
Air/water pollutant analysis equipment
4. Consumer electronics and household appliances
Liquid proportioning pumps in smart coffee machines
Essence/nutrient solution delivery modules in beauty devices
5. Industrial automation and precision control
Small dosing systems
Liquid transmission in dispensing systems
